W3605000001
£221.59
£184.66
In stock
SKU
FT-W3605000001

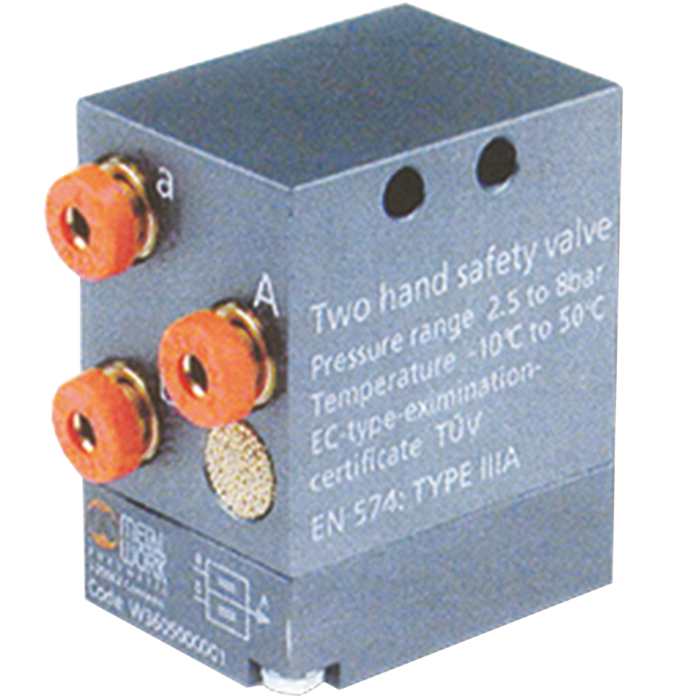

TWO HAND SAFETY VALVE
TWO HAND SAFETY VALVE
Technical Specifications: Compressed air couplings: push-in fittings for �4mm pipe. Fluid: filtered, non-lubricated compressed air. Standard: EN574 type IIIA, TUV approved, certified M6020244919001. Synchronisation, maximum time between two signals: 0.4 sec. De-activation time, with 1000mm maximum pipe length: <0.05 sec. Actuation: pneumatic. Reset: spring operated. Nominal diameter: 2.7mm. Mounting position: any direction. Materials: Body: anodised aluminium. Internal parts: brass and technopolymer. Gaskets: NBR. Spring: alloy steel.
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the W3605000001 Range of Two Hand Control Unit.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
Technical Specifications: Compressed air couplings: push-in fittings for �4mm pipe. Fluid: filtered, non-lubricated compressed air. Standard: EN574 type IIIA, TUV approved, certified M6020244919001. Synchronisation, maximum time between two signals: 0.4 sec. De-activation time, with 1000mm maximum pipe length: <0.05 sec. Actuation: pneumatic. Reset: spring operated. Nominal diameter: 2.7mm. Mounting position: any direction. Materials: Body: anodised aluminium. Internal parts: brass and technopolymer. Gaskets: NBR. Spring: alloy steel.
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the W3605000001 Range of Two Hand Control Unit.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
