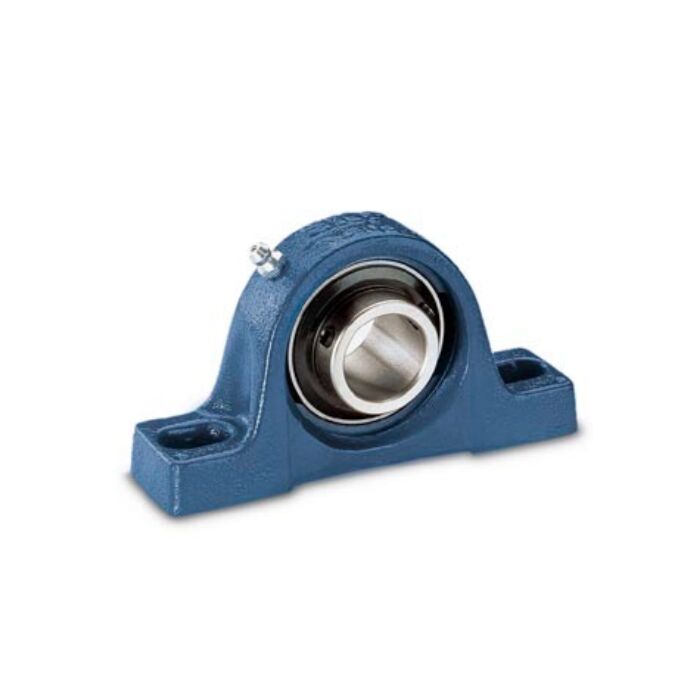

SKF SY55FM 2 Bolt Pillow Block Bearing
£108.60
£90.50
In stock
SKU
SY55FM
Bore Size: 55mm
Housing Length: 219mm
Housing Width: 60mm
Bolt Hole Centres: 171.5mm
Housing Length: 219mm
Housing Width: 60mm
Bolt Hole Centres: 171.5mm
SY55FM 55mm Bore Y-bearing Plummer Block - Cast Housing & Eccentric Locking Collar
Bolt Hole Dia (N): 27.5mm
Bore Size (d): 55mm
Bolt Hole Centres (J): 171.5mm
Housing Length (L): 219mm
Housing Width (A): 60mm
Overall Height (H): 126mm
Limiting Speed: 3600r/min
Shaft Centre Height (H1): 63.5mm
Bolt Hole Dia (N): 27.5mm
Bore Size (d): 55mm
Bolt Hole Centres (J): 171.5mm
Housing Length (L): 219mm
Housing Width (A): 60mm
Overall Height (H): 126mm
Limiting Speed: 3600r/min
Shaft Centre Height (H1): 63.5mm
