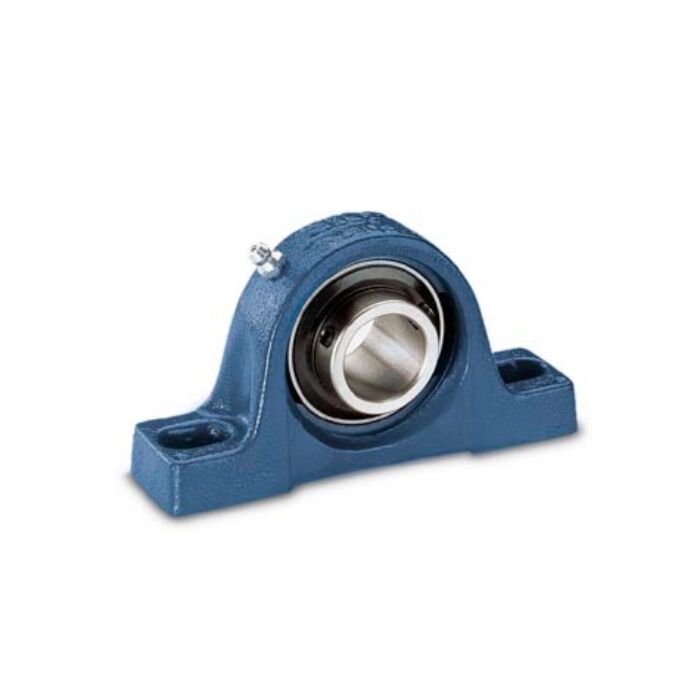

SKF SYH3/4WF 2 Bolt Pillow Block Bearing
£52.38
£43.65
In stock
SKU
SYH3/4WF
Bore Size: 3/4" (19.05mm)
Housing Length: 5.00" (127mm)
Housing Width: 1.26" (32mm)
Bolt Hole Centres: 3.82" (97mm)
Housing Length: 5.00" (127mm)
Housing Width: 1.26" (32mm)
Bolt Hole Centres: 3.82" (97mm)
SKF SYH3/4WF 3/4inch Bore Y-bearing Plummer Block - Cast Housing & Eccentric Locking Collar
Bolt Hole Dia (N): 0.81inch (20.5mm)
Bore Size (d): 3/4inch (19.05mm)
Bolt Hole Centres (J): 3.82inch (97mm)
Housing Length (L): 5.00inch (127mm)
Housing Width (A): 1.26inch (32mm)
Overall Height (H): 2.46inch (62.5nn)
Shaft Centre Height (H1): 1.25inch (31.8mm)
Limiting Speed: 8500r/min
Bolt Hole Dia (N): 0.81inch (20.5mm)
Bore Size (d): 3/4inch (19.05mm)
Bolt Hole Centres (J): 3.82inch (97mm)
Housing Length (L): 5.00inch (127mm)
Housing Width (A): 1.26inch (32mm)
Overall Height (H): 2.46inch (62.5nn)
Shaft Centre Height (H1): 1.25inch (31.8mm)
Limiting Speed: 8500r/min
