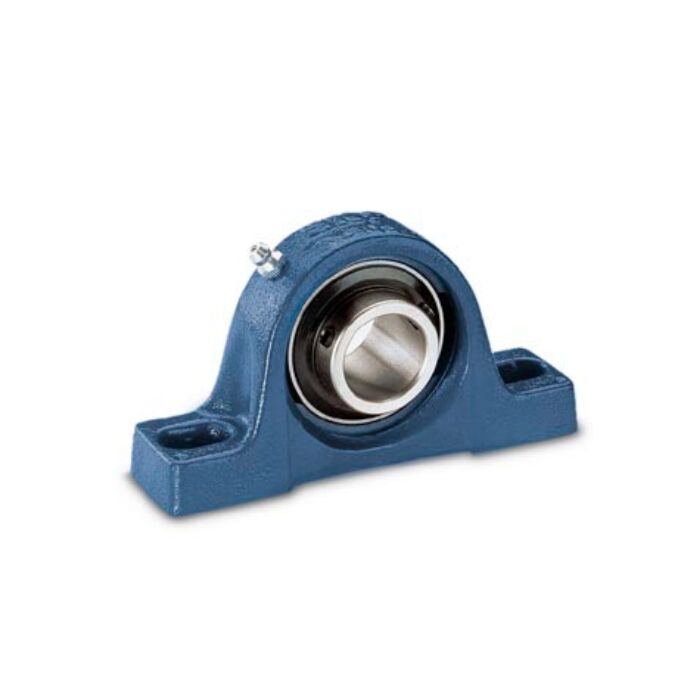

SKF SY2.1/4TF 2 Bolt Pillow Block Bearing
£133.38
£111.15
In stock
SKU
SY2.1/4TF
Bore Size: 2.1/4" (57.15mm)
Housing Length: 9.45" (240mm)
Housing Width: 2.36" (60mm)
Bolt Hole Centres: 7.50" (190.5mm)
Housing Length: 9.45" (240mm)
Housing Width: 2.36" (60mm)
Bolt Hole Centres: 7.50" (190.5mm)
SY2.1/4TF 2.1/4inch Bore Y-bearing Plummer Block - Cast Housing & Grub Screws
Bolt Hole Dia (N): 1.16inch (29.5mm)
Limiting Speed: 3400r/min
Bore Size (d): 2.1/4inch (57.15mm)
Bolt Hole Centres (J): 7.50inch (190.5mm)
Housing Length (L): 9.45inch (240mm)
Housing Width (A): 2.36inch (60mm)
Overall Height (H): 5.50inch (139.5mm)
Shaft Centre Height (H1): 2.75inch (69.9mm)
Bolt Hole Dia (N): 1.16inch (29.5mm)
Limiting Speed: 3400r/min
Bore Size (d): 2.1/4inch (57.15mm)
Bolt Hole Centres (J): 7.50inch (190.5mm)
Housing Length (L): 9.45inch (240mm)
Housing Width (A): 2.36inch (60mm)
Overall Height (H): 5.50inch (139.5mm)
Shaft Centre Height (H1): 2.75inch (69.9mm)
