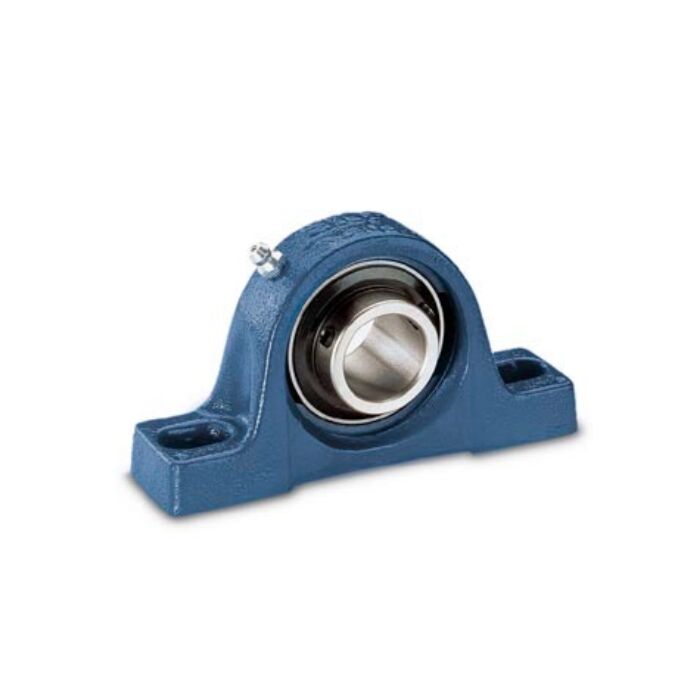

SKF SY1.5/16TF 2 Bolt Pillow Block Bearing
£57.78
£48.15
In stock
SKU
SY1.5/16TF
Bore Size: 1.5/16" (33.337mm)
Housing Length: 6.30" (160mm)
Housing Width: 1.77" (45mm)
Bolt Hole Centres: 4.96" (126mm)
Housing Length: 6.30" (160mm)
Housing Width: 1.77" (45mm)
Bolt Hole Centres: 4.96" (126mm)
SY1.5/16TF SKF 1.5/16inch Bore Y-bearing Plummer Block - Cast Housing & Grub Screws
Bolt Hole Dia (N): 0.83inch (21mm)
Limiting Speed: 5300r/min
Bore Size (d): 1.5/16inch (33.337mm)
Bolt Hole Centres (J): 4.96inch (126mm)
Housing Length (L): 6.30inch (160mm)
Housing Width (A): 1.77inch (45mm)
Overall Height (H): 3.66inch (93mm)
Shaft Centre Height (H1): 1.87inch (47.6mm)
Bolt Hole Dia (N): 0.83inch (21mm)
Limiting Speed: 5300r/min
Bore Size (d): 1.5/16inch (33.337mm)
Bolt Hole Centres (J): 4.96inch (126mm)
Housing Length (L): 6.30inch (160mm)
Housing Width (A): 1.77inch (45mm)
Overall Height (H): 3.66inch (93mm)
Shaft Centre Height (H1): 1.87inch (47.6mm)
