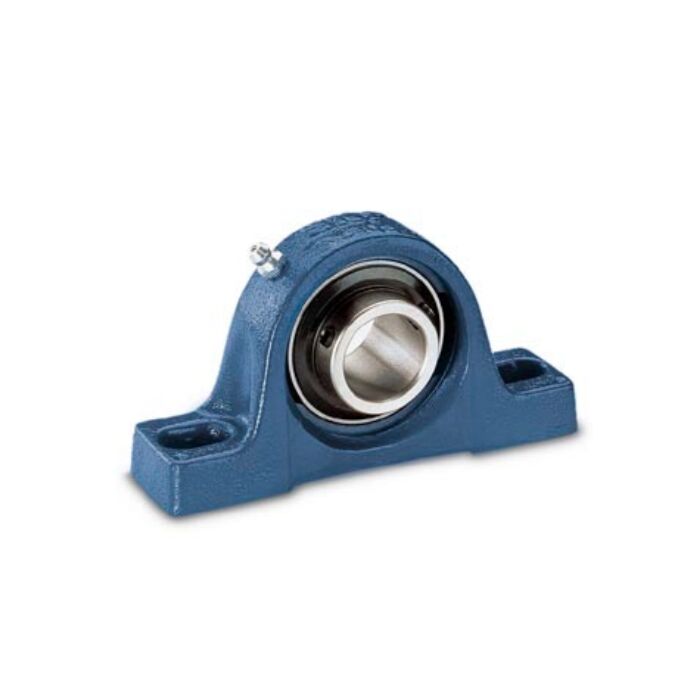

SKF SY1.3/4TF 2 Bolt Pillow Block Bearing
£69.04
£57.53
In stock
SKU
SY1.3/4TF
Bore Size: 1.3/4" (44.45mm)
Housing Length: 7.36" (187mm)
Housing Width: 1.89" (48mm)
Bolt Hole Centres: 5.65" (143.5mm)
Housing Length: 7.36" (187mm)
Housing Width: 1.89" (48mm)
Bolt Hole Centres: 5.65" (143.5mm)
SY1.3/4TF 1.3/4inch Bore Y-bearing Plummer Block - Cast Housing & Grub Screws
Bolt Hole Dia (N): 0.89inch (22.7mm)
Limiting Speed: 4300r/min
Bore Size (d): 1.3/4inch (44.45mm)
Bolt Hole Centres (J): 5.65inch (143.5mm)
Housing Length (L): 7.36inch (187mm)
Housing Width (A): 1.89inch (48mm)
Overall Height (H): 4.23inch (107.5mm)
Shaft Centre Height (H1): 2.13inch (54mm)
Bolt Hole Dia (N): 0.89inch (22.7mm)
Limiting Speed: 4300r/min
Bore Size (d): 1.3/4inch (44.45mm)
Bolt Hole Centres (J): 5.65inch (143.5mm)
Housing Length (L): 7.36inch (187mm)
Housing Width (A): 1.89inch (48mm)
Overall Height (H): 4.23inch (107.5mm)
Shaft Centre Height (H1): 2.13inch (54mm)
