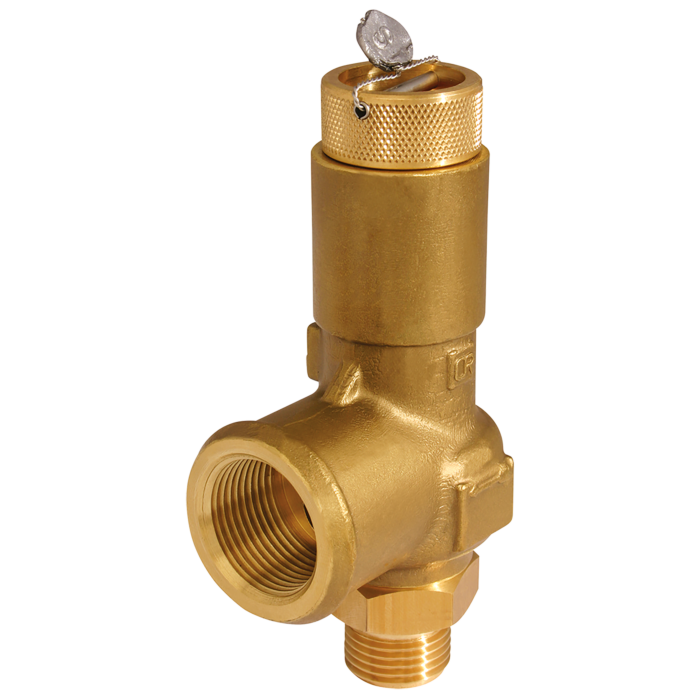

SEE9434P2B

2.5 BAR 3/4 X 1 BSPP 13MM ENC. S. VALVE
Seetru Enclosed Discharge Safety Relief valves are compact and highly efficient. Polymers such as Viton, Nitrile, Silicone, Neoprene and EPDM offer excellent sealing performance. These valves are suitable for for a wide range of applications. They are available is stainless steel, dezincification resistant brass or a combination of dezincification resistant brass with stainless steel trim. Type approved and/or designed in accordance with national & international standards which include BS6759 part 2 & 3, ISO4126-1:1991, TUV (Germany) in compliance with AD Merkblatt A2 and BAM (Germany) requirements for oxygen. Compliant with the requirements of the European Pressure Directive 97/23/EC and CE marked. Oxygen service valves are subject to degreasing at additional cost. Seals: Viton. Sealing: Elastomer. Liquid Duty Only Calculated: Kg/hr Water @ 15ﾰC.
BearingShopUK holds a large stock of Process Valves and Instrumentation equipment, including the SEE9434P2B Range of Pressure Relief Valve.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
TS10347
