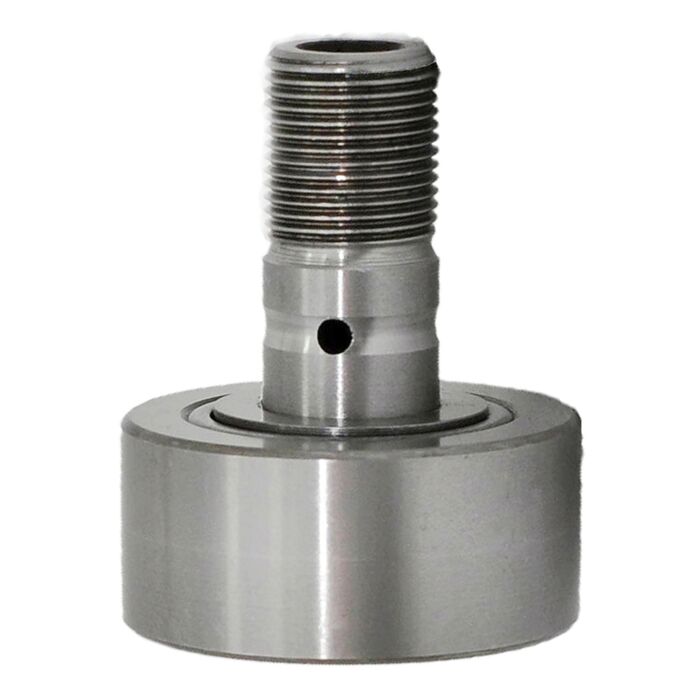

Cam followers are specialised needle type bearings designed to follow cam lobe profiles. They are similar in operation to a standard bearing, but instead of an inner race they have a solid stud mount.

Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.

D= 72
C= 28
d= 28
B= 80
B1= 49.5
B2= -
C1= 1.3
d1= 44
G= M24x1.5
G1= 25
M1= -
r min= 1.1
SW= 14
Eccentric Collar c= 1
B3= 22
Dynamic Load N= 39600
Static Load N= 45000
Fatigue Load Limit Pu= 5600
Radial Dynamic Load N= 47500
Radial Static Load N= 68000
Speed Rating rpm= 2200
Weight g= 1050
