NUKRE40A Budget Cam Follower
£52.51
£43.76
In stock
SKU
CF-24554
InsideDiameter:
22mm
OutsideDiameter: 40mm
Width: 20mm
OutsideDiameter: 40mm
Width: 20mm

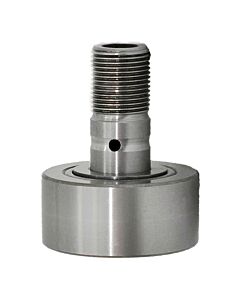

Cam followers are specialised needle type bearings designed to follow cam lobe profiles. They are similar in operation to a standard bearing, but instead of an inner race they have a solid stud mount.
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
D= 40
C= 20
d= 22
B= 58
B1= 33.5
B2= -
C1= 3.8
d1= 30
G= M18x1.5
G1= 19
M= -
M1= -
r min= 1
SW= 8
Eccentric Collar c= 1
B3= 14
Dynamic Load N= 19000
Static Load N= 22000
Fatigue Load Limit Pu= 2500
Radial Dynamic Load N= 14000
Radial Static Load N= 20000
Speed Rating rpm= 5500
Weight g= 260
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
D= 40
C= 20
d= 22
B= 58
B1= 33.5
B2= -
C1= 3.8
d1= 30
G= M18x1.5
G1= 19
M= -
M1= -
r min= 1
SW= 8
Eccentric Collar c= 1
B3= 14
Dynamic Load N= 19000
Static Load N= 22000
Fatigue Load Limit Pu= 2500
Radial Dynamic Load N= 14000
Radial Static Load N= 20000
Speed Rating rpm= 5500
Weight g= 260
