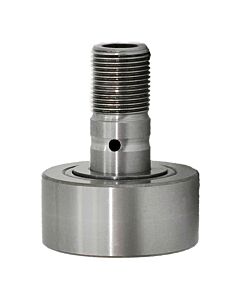

NUKR35A Cam Follower
£51.91
£43.26
In stock
SKU
CF-24520
InsideDiameter:
16mm
OutsideDiameter: 35mm
Width: 18mm
OutsideDiameter: 35mm
Width: 18mm
Cam followers are specialised needle type bearings designed to follow cam lobe profiles. They are similar in operation to a standard bearing, but instead of an inner race they have a solid stud mount.
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
D= 35
C= 18
d= 16
B= 52
B1= 32.5
B2= 7.8
C1= 0.8
d1= 20
G= M16x1.5
G1= 17
M= -
M1= 3
r min= 0.6
SW= 8
Eccentric Collar c= -
B3= -
Dynamic Load N= 16800
Static Load N= 17600
Fatigue Load Limit Pu= 2000
Radial Dynamic Load N= 8650
Radial Static Load N= 12200
Speed Rating rpm= 6500
Weight g= 160
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
D= 35
C= 18
d= 16
B= 52
B1= 32.5
B2= 7.8
C1= 0.8
d1= 20
G= M16x1.5
G1= 17
M= -
M1= 3
r min= 0.6
SW= 8
Eccentric Collar c= -
B3= -
Dynamic Load N= 16800
Static Load N= 17600
Fatigue Load Limit Pu= 2000
Radial Dynamic Load N= 8650
Radial Static Load N= 12200
Speed Rating rpm= 6500
Weight g= 160
