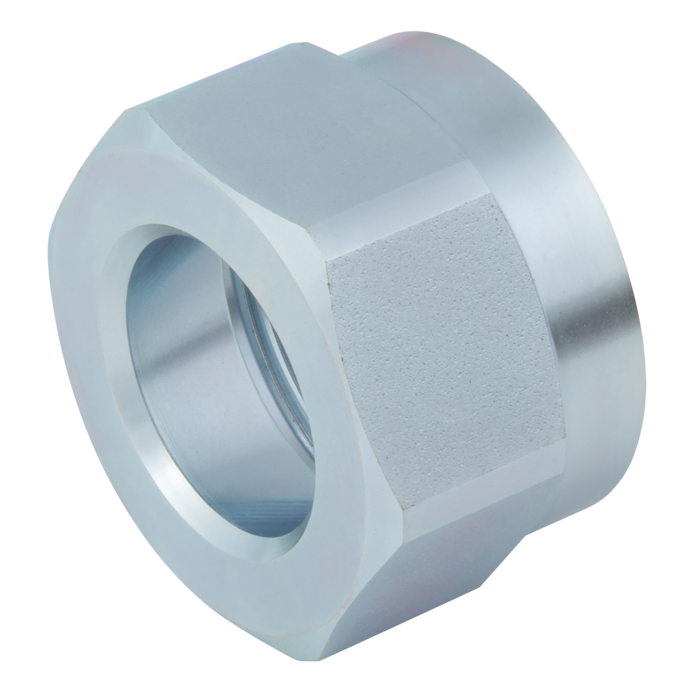

KRM30NCR

KR 30MM AND 11/4 NUT
Benefits: Leak free O-Ring seal. Safe joint every time. Low tightening torque and clamping force rises with the internal pressure. Low installed cost, no welding (so inert gas purging, NDT and excessive flushing are not required), minimal tube preparation and no special assembly equipment required. Demountable and reusable, can be used with most tube materials. Features: Body - mild, stainless steel or cupro-nickel, compatible with most fluids and environments. Locates O-Ring and tube. O-Ring - nitrile, FPM (viton), EP or FEP encapsulated FPM, compatible with most fluids, highly resistant to leakage even under severe vibration, pressure pulsation and temperature cycling. Provides diametric seal between tube O/D and body cavity. Nut - mild steel, stainless steel or cupro-nickel, compatible with most environments. Closes split collet and retains sealing mechanism. Back-up washer - mild steel, stainless steel or cupro-nickel. Provides additional support from the tube and locates the O-Ring. Split collet _ mild steel, stainless steel or cupro-nickel. Clamping force rises with pressure. Large clamping area ensures minimal deformation of the tube. Retains tube in position. 3:1 Safety Factor. Derate by 50% for high pressure gas systems. Pressure ratings based on the tube OD tolerance to BS3602 and DIN2391C. All Fittings also available in the below materials upon request. Stainless Steel, Cupro-nickel. Seals available on request EP (Ethylene Propylene), FEP Encapsulated FPM. All Fittings Supplied with Nitrile seals as standard.
BearingShopUK holds a large stock of Hydraulic equipment, including the KRM30NCR Range of Nuts, Cutting Rings and Seals.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
TS20553
