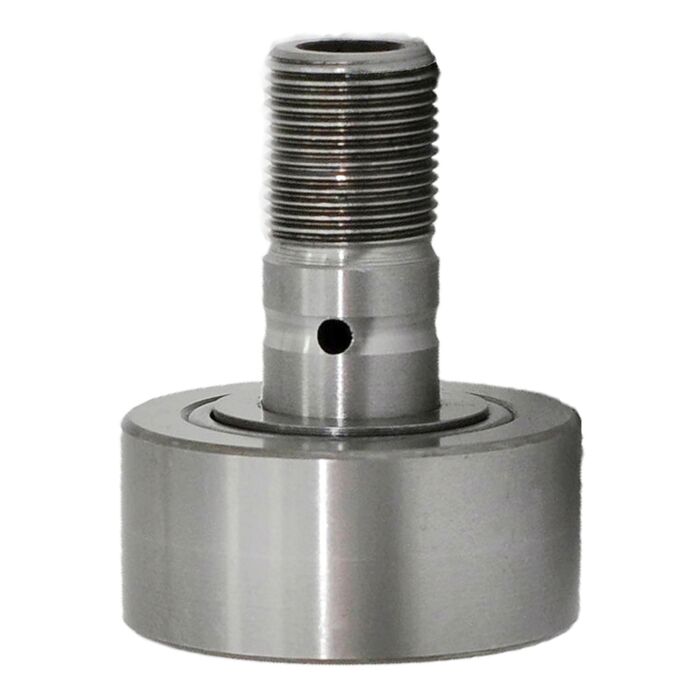

Cam followers are specialised needle type bearings designed to follow cam lobe profiles. They are similar in operation to a standard bearing, but instead of an inner race they have a solid stud mount.

Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.

D= 90
C= 35
d= 30
B= 100
B1= 63
B2= 15
C1= 1
d1= 53
G= M30x1.5
G1= 32
M1= 4
r min= 1.1
SW= 14
Eccentric Collar c= -
B3= -
Dynamic Load N= 38000
Static Load N= 76500
Fatigue Load Limit Pu= 9500
Radial Dynamic Load N= 160000
Radial Static Load N= 228000
Speed Rating rpm= 1300
Weight g= 1980
