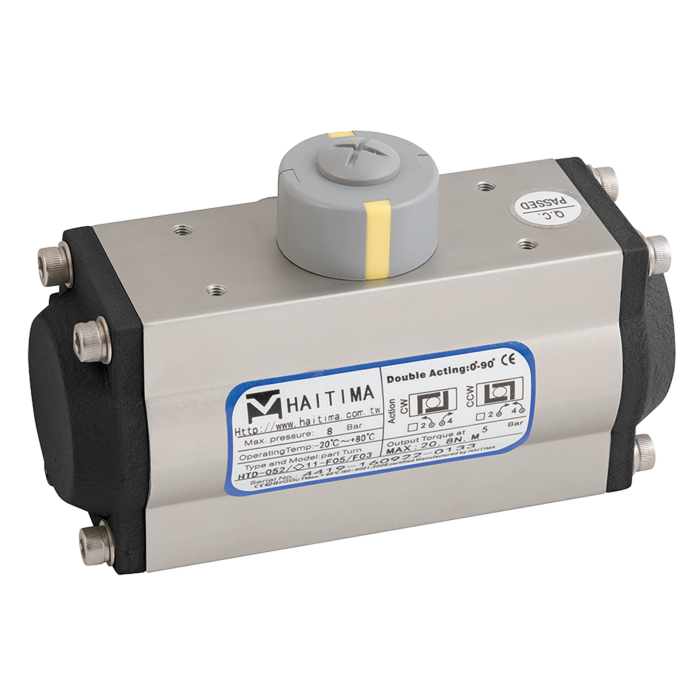

HAITIMA MODEL HTD-105 DOU/ACT ACTUATOR
Features: 0-90ﾰ rotation angle to pilot ball, butterfly and plug valves. Double acting torques from 9 to 3916Nm at 6 bar. Single acting torques from 9.5 to 1547.5Nm at 6 bar. Hard anodized aluminium body. ATEX II 2GD c T5 certification. Conforms to ISO 5211, DIN 3337 and VDI/VDE 3845. Epoxy coated end caps. NAMUR pneumatic connection for solenoid valve installation.
BearingShopUK holds a large stock of Process Valves and Instrumentation equipment, including the HTD-105 Range of Pneumatic Actuator.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
