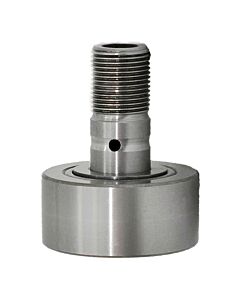

CNBE60SB Cam Follower
£47.52
£39.60
In stock
SKU
CF-24320
InsideDiameter:
25.40mm
=1inch OutsideDiameter: 47.63mm
=1-7/8inch Width: 25.40mm
=1inch
=1inch OutsideDiameter: 47.63mm
=1-7/8inch Width: 25.40mm
=1inch
Cam followers are specialised needle type bearings designed to follow cam lobe profiles. They are similar in operation to a standard bearing, but instead of an inner race they have a solid stud mount.
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
A= 1.875 inch
B= 1 inch
C= 0.875 inch
D= 1 inch
E= 1.75 inch
F= 0.875 inch
Thread Class 2A G= 3/4-16 UNF
H= 3/16 inch
Min Boss Diameter= 1-3/64 inch
Recommended Torque= 1250 lbf-in
Max Static Capacity= 7920 lbs
Basic Dynamic Rating= 6385 lbs
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
A= 1.875 inch
B= 1 inch
C= 0.875 inch
D= 1 inch
E= 1.75 inch
F= 0.875 inch
Thread Class 2A G= 3/4-16 UNF
H= 3/16 inch
Min Boss Diameter= 1-3/64 inch
Recommended Torque= 1250 lbf-in
Max Static Capacity= 7920 lbs
Basic Dynamic Rating= 6385 lbs
