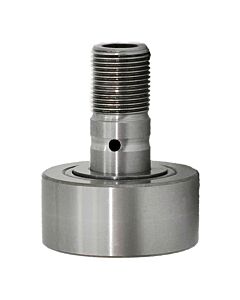

CNBE52S Cam Follower
£43.32
£36.10
In stock
SKU
CF-24304
InsideDiameter:
22.23mm
=0.875inch OutsideDiameter: 41.28mm
=1-5/8inch Width: 22.23mm
=0.875inch
=0.875inch OutsideDiameter: 41.28mm
=1-5/8inch Width: 22.23mm
=0.875inch
Cam followers are specialised needle type bearings designed to follow cam lobe profiles. They are similar in operation to a standard bearing, but instead of an inner race they have a solid stud mount.
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
A= 1.625 inch
B= 0.875 inch
C= 0.75 inch
D= 0.875 inch
E= 1.5 inch
F= 0.75 inch
Thread Class 2A G= 5/8-18 UNF
H= 3/16 inch
Min Boss Diameter= 57/64 inch
Recommended Torque= 650 lbf-in
Max Static Capacity= 5640 lbs
Basic Dynamic Rating= 4840 lbs
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
A= 1.625 inch
B= 0.875 inch
C= 0.75 inch
D= 0.875 inch
E= 1.5 inch
F= 0.75 inch
Thread Class 2A G= 5/8-18 UNF
H= 3/16 inch
Min Boss Diameter= 57/64 inch
Recommended Torque= 650 lbf-in
Max Static Capacity= 5640 lbs
Basic Dynamic Rating= 4840 lbs
