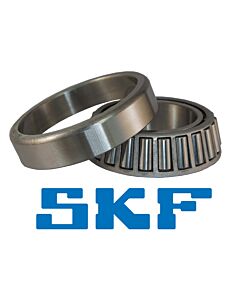

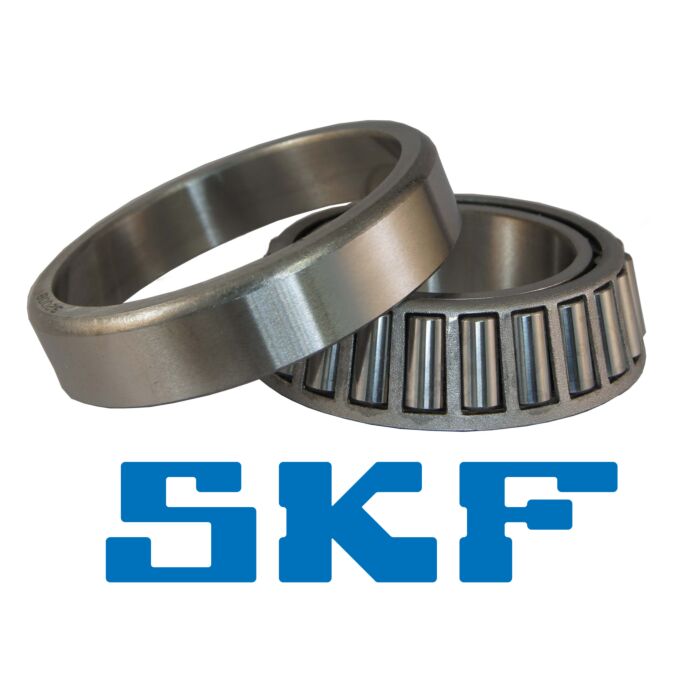

30207J2/Q SKF Metric Taper Roller Bearing
£17.99
£14.99
In stock
SKU
43699
Inside Diameter: 35mm
External Diameter: 72mm
Width: 18.25mm
Brand: SKF
External Diameter: 72mm
Width: 18.25mm
Brand: SKF
Technical Dimensions
Inside Diameter: | 35mm |
Outside Diameter: | 72mm |
Width: | 18.25mm |
Dynamic Load Rating: | 51.2 kN |
Static Load Rating: | 56 kN |
Fatigue Load Limit: | 6.1 kN |
Reference Speed: | 7000 r/min |
Limiting Speed: | 9500 r/min |
d : | 51.8mm |
d1 : | 17mm |
C : | 15mm |
r1,2 (min): | 1.5mm |
r3,4 (min): | 1.5mm |
a : | 15mm |
da (max): | 44mm |
db (min): | 42mm |
Da (min): | 62mm |
Da (max): | 65mm |
Db (min): | 67mm |
Ca (min): | 3mm |
Cb (min): | 3mm |
ra (max): | 1.5mm |
rb (max): | 1.5mm |
e : | 0.37 |
Y : | 1.6 |
Yo : | 0.9 |
