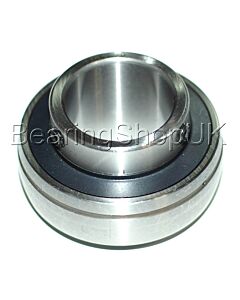

1140-1.3/8 Bearing Insert
£31.12
£25.93
In stock
SKU
102744
Inside Diameter: 34.93mm (1.3/8")
Outside Diameter: 80mm
Inner Width: 49.2mm
Outer Width: 18mm
Style: parallel outer and integral set screw lock
Outside Diameter: 80mm
Inner Width: 49.2mm
Outer Width: 18mm
Style: parallel outer and integral set screw lock
Bearing Insert
seperator
Technical Information
| Inside Diameter: | 34.93mm (1.3/8") |
| Outside Diameter (D): | 80mm |
| Outer Width (C): | 18mm |
| Length Through Bore (B): | 49.2mm |
| Rear to Center (S): | 19.03mm |
| Inner Race OD (d1): | 52.4mm |
| Set Screw To Front (M): | 8mm |
| Radius (r): | 1mm |
| Dynamic Load Rating: | 32500N |
| Static Load Rating: | 19900N |
| Max Speed: | 4000rev/min |
| Weight: | 0.64kg |
