1017-5/8G Bearing Insert
£15.86
£13.22
In stock
SKU
102628
Inside Diameter: 15.88mm (5/8")
Outside Diameter: 40mm
Inner Width: 27.38mm
Outer Width: 12mm
Style: spherical outer and integral set screw lock
Outside Diameter: 40mm
Inner Width: 27.38mm
Outer Width: 12mm
Style: spherical outer and integral set screw lock

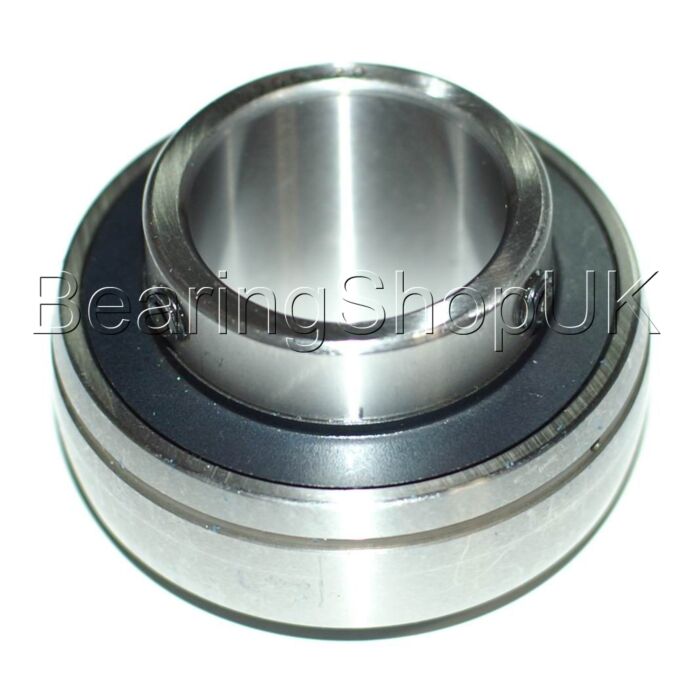

Bearing Insert
seperator
Technical Information
| Inside Diameter: | 15.88mm (5/8") |
| Outside Diameter (D): | 40mm |
| Outer Width (C): | 12mm |
| Length Through Bore (B): | 27.38mm |
| Rear to Center (S): | 11.58mm |
| Inner Race OD (d1): | 24.8mm |
| Set Screw To Front (M): | 5mm |
| Radius (r): | 0.6mm |
| Dynamic Load Rating: | 9550N |
| Static Load Rating: | 4800N |
| Max Speed: | 7000rev/min |
| Weight: | 0.09kg |
